The Correflux™ 5420 carryover electrostatic probe detects process upsets by measuring increases in the quantity of entrained particles in gas recycle and discharge lines. This real-time feedback allows for optimization of gas flows and other process conditions.
The Correflux™ 5420 electrostatic sensor can be used as a particulate carryover probe that monitors conditions within the gas recycle lines and the gas discharge lines of various process vessels. Immediate indication of process upset conditions along with real-time feedback of particle entrainment will allow for improved reactor control as well as optimized process conditions and production rates. This information is critical in protecting expensive down-stream equipment from damage caused by excessive particle carryover.

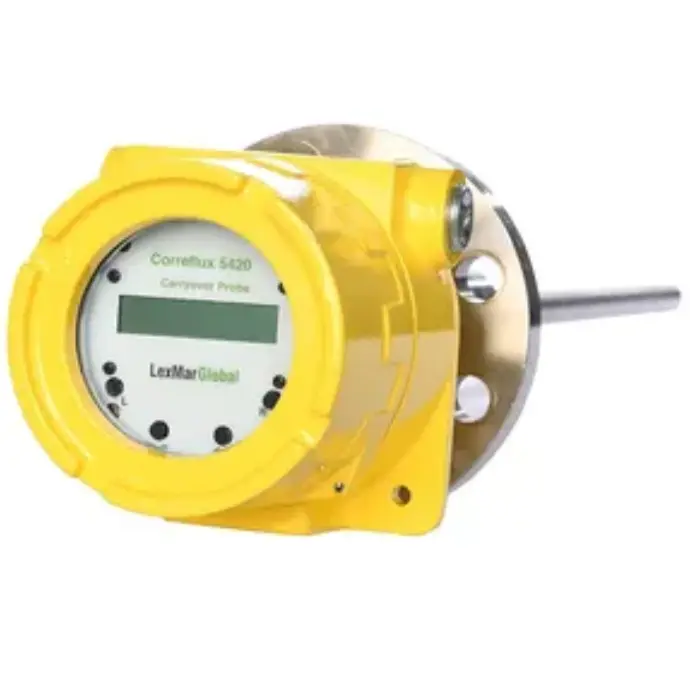

The Correflux™ 5420 electrostatic probe is ruggedized to be installed in the harsh conditions of reactor discharge lines. A sensing probe can be customized to be inserted into an available port or nozzle with standard flanged connections. It is designed to withstand the impact of entrained particles and to quickly alert plant operators of upset conditions. It is available in either an integral or remote probe and electronics configuration, for cases with extreme process conditions such as high temperature.
- Real-time indication of entrained particle concentration changes
- Allows optimization of fluidizing gas flow
- User-selectable sensitivity
- No moving parts; no maintenance or spare parts required
- Compact one-piece design standard (remote version also available)
- Custom-designed probe for easy, low-cost installation into existing ports
- Designed for harsh industrial environment
- Approved for use in hazardous areas
The Correflux™ 5420 probe is engineered to operate continuously 24 hours per day, seven days per week. It is designed for the harsh environment of a polymer reactor, requiring no maintenance or spare parts. The Correflux probe measures current generated by particles impinging upon the probe. This low-level signal is proportional to the relative amount of particles hitting the probe
- Standard port (nozzle) sizes: 1.5" and 2" (others available)
- Flange mounting (300# typical)
- Cylindrical enclosure is 5.6" (14.3 cm) in diameter, 5.7" (19.4 cm) L
- Built to withstand significant impacts and reactor conditions
- Distance from flange face to tip of sensor is user specific
- ATEX / IECEx (Ex II 2 G/Ex db ia IIC T3 Gb)
- cULus Listed [E487115] nonincendive for Class I, Division 2, Groups A, B, C, and D
- Operating Temperature Range: –20°C up to 55°C
- Consult LexMar Global for high temperature applications.
ELECTRICAL
- 120 or 230 VAC 50/60 Hz or 24 VDC, 10 VA
- Two ¾" NPT entries for power and analog output signal
- Intrinsically safe probe connection
- Probe tip operates at <1 volt, eliminating the dangers of a high voltage source within the reactor
- 4–20mA bipolar outputs, two user-selected parameters can be assigned as outputs
- Full scale output range selectable from 0.1nA to 1000nA of electrostatic current
- User selectable signal damping
The Correflux™ 5420 probe is engineered to operate continuously 24 hours per day, seven days per week. It is designed for the harsh environment of a polymer reactor, requiring no maintenance or spare parts. The Correflux probe measures current generated by particles impinging upon the probe. This low-level signal is proportional to the relative amount of particles hitting the probe
